Vortex Flow Meters for Steam Applications
Cadillac® vortex meters provide direct flow measurement for saturated and superheated steam systems. With no moving parts and a flow-proportional vortex frequency, they offer a dependable solution for monitoring steam distribution, balancing energy consumption and measuring usage at boilers and points of use.
Reliable Measurement for Saturated and Superheated Steam
Steam is widely used to transfer thermal energy through industrial plants, institutional facilities and commercial systems. Measuring its flow helps operators understand consumption, balance distribution and monitor energy use at both boiler and point-of-use locations.
Cadillac® vortex meters measure steam by detecting the frequency of vortices generated as the flowing medium passes a precisely shaped shedder bar. Because vortex frequency is directly proportional to fluid velocity, the meter can calculate flow without relying on moving mechanical components.
No Moving Parts
The vortex-shedding measurement principle eliminates internal rotating or reciprocating components from the flow measurement process.
Direct Steam Measurement
Cadillac® vortex technology is suitable for direct measurement of saturated and superheated steam across a range of operating conditions.
Energy Management
Flow data can support steam-system balancing, consumption monitoring, submetering and the allocation of thermal energy use.
Where Steam Flow Measurement Delivers Value
Steam flow meters can be positioned throughout a distribution system to measure total generation, monitor individual processes and identify how steam is being used across a facility.
Common Metering Points
Saturated Steam
Saturated steam measurement is used throughout heating, process and energy-distribution systems where steam exists at the saturation temperature corresponding to its pressure.
Superheated Steam
Superheated steam applications require compensation for changing process conditions. Pressure and temperature information may be used to calculate compensated mass flow.
Cadillac® Vortex Meters for Steam
Cadillac Meter offers two vortex meter configurations for steam flow measurement. Both use piezoelectric sensing technology to detect vortex frequency, but the sensors are positioned differently within the meter.
Need help selecting a meter? Correct selection depends on the steam condition, operating pressure, temperature, line size and expected minimum and maximum flow rates.
How a Vortex Meter Measures Steam Flow
Cadillac® vortex meters use the Kármán vortex-shedding principle. As steam passes the meter’s shedder bar, alternating vortices form downstream. The frequency of these vortices changes in direct proportion to the velocity of the flowing steam.
Steam Enters the Meter
The flowing steam passes through the meter body and reaches the fixed vortex shedder bar.
Vortices Form
Alternating low-pressure vortices separate from each side of the shedder bar.
Sensors Detect Frequency
Piezoelectric sensors detect the pressure changes associated with each passing vortex.
Electronics Calculate Flow
The measured frequency and calibrated meter K-factor are used to calculate and transmit the flow rate.
From Velocity to Flow Rate
Vortex frequency establishes fluid velocity. The meter electronics combine this velocity with the meter’s effective cross-sectional area and calibration data to determine volumetric flow.
Compensated Mass Flow
For compressible media such as steam, temperature and pressure compensation can be used to account for changing density and calculate mass flow. The required configuration depends on whether the steam is saturated or superheated.
Correct Installation Starts With Correct Meter Sizing
Steam meters should be selected from the actual operating flow range rather than the nominal steam-pipe size alone. In many systems, the vortex meter body is smaller than the surrounding pipe so that sufficient velocity is maintained across both normal and reduced steam loads.
The meter installation must also provide suitable flow conditioning. Disturbed flow caused by valves, bends, reducers and other piping components can affect measurement performance if adequate straight pipe is not provided.
Provide at least ten nominal pipe diameters of straight pipe upstream when reducer or expander piping is used.
Provide at least five nominal pipe diameters of straight pipe downstream of the meter installation.
A reducing spool arrangement may be required when the selected meter is smaller than the existing steam line.
Information Required for Meter Selection
Cadillac Meter reviews the process conditions to confirm that the selected vortex meter can cover the required operating range.
Important: The straight-pipe figures above relate specifically to the reducer or expander arrangement described by Cadillac Meter. Final installation requirements should be confirmed for the selected meter and the actual upstream piping configuration.
Accounting for Changes in Steam Density
A vortex meter directly measures flow velocity and calculates volumetric flow. Because steam is compressible, its density changes with process conditions. Mass-flow compensation uses temperature, pressure and stored steam-property data to convert the measured volume into compensated steam mass.
The compensation method depends on whether the application contains saturated or superheated steam. Establishing the steam condition is therefore an essential part of meter selection.
Compensated Steam Measurement
Configuration note: Superheated steam measurement requires an external pressure input when using the CV-P mass-flow configuration. Final instrumentation requirements should be confirmed during meter selection.
Steam Flow Meter FAQs
These answers address the principal questions involved in selecting and applying a Cadillac® vortex flow meter to a steam system.
Can a vortex meter measure both saturated and superheated steam?
Yes. Cadillac® vortex meters can be configured for saturated or superheated steam. The required mass-flow compensation arrangement depends on the steam condition and the available pressure and temperature inputs.
Why is the vortex meter sometimes smaller than the steam pipe?
Vortex meters need sufficient fluid velocity to produce a stable, measurable vortex signal. Selecting the meter from the actual steam flow range may therefore result in a meter body smaller than the nominal line size.
Does a steam vortex meter have moving parts?
No moving mechanical components are used to generate the flow measurement. A fixed shedder bar creates vortices, and piezoelectric sensors detect their frequency.
How much straight pipe is required?
For the reducer or expander arrangement described by Cadillac Meter, provide at least 10 nominal pipe diameters upstream and five diameters downstream. Other disturbances may require different straight-pipe arrangements.
What information is needed to size a steam meter?
Meter selection requires the steam condition, operating pressure, operating temperature, existing pipe size and expected minimum, normal and maximum flow rates.
What is the difference between the CV-P and CV-HS?

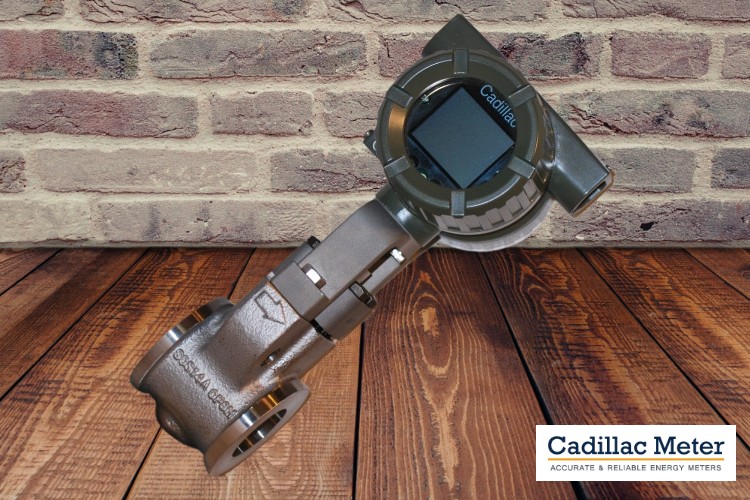

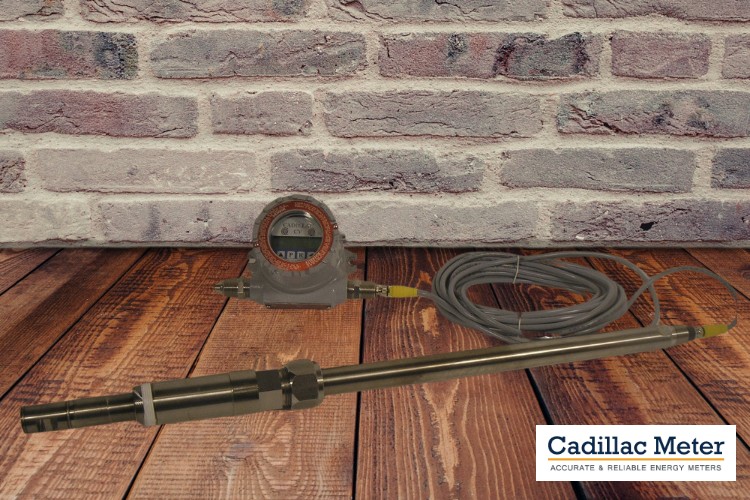

The main sensing distinction is sensor location. The CV-P positions its piezoelectric crystals in the upper portion of the shedder bar, outside the main flow stream. The CV-HS positions its sensors in the flow body downstream of the shedder bar.
Every steam application should be reviewed against its actual process conditions. Cadillac Meter can confirm meter size, operating range, compensation requirements and installation configuration before quotation.
Select the Right Vortex Meter for Your Steam System
Send Cadillac Meter your steam condition, pressure, temperature, pipe size and operating flow range. Our team can review the application and recommend the appropriate meter size, configuration and compensation method.
