BTU Energy Measurement Systems
Measure flow and the associated energy consumed or transferred across hot and chilled water, steam, natural-gas and other industrial energy systems.
How a BTU Energy System Works
In a hot or chilled water system, thermal energy measurement depends on three coordinated inputs: the volume of liquid moving through the system, the supply temperature and the return temperature.
The energy computer uses the measured flow and temperature difference to calculate the energy transferred or consumed. The accuracy of the complete result therefore depends on the flow meter, temperature sensors and energy calculation working together as one system.
Application distinction: Hot and chilled water systems normally calculate energy from liquid flow and the difference between supply and return temperatures. Steam and natural-gas energy applications require measurement systems configured for the properties and operating conditions of those media.
Accuracy Depends on the Complete Energy System
As energy costs rise and performance-verification requirements become more demanding, reliable measurement becomes increasingly important. A BTU system cannot be judged by the energy computer alone: each measurement component contributes to the final result.
Flow Measurement

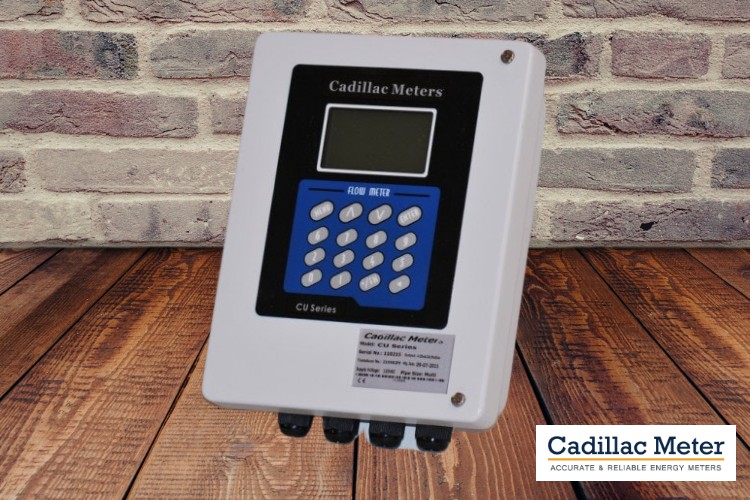

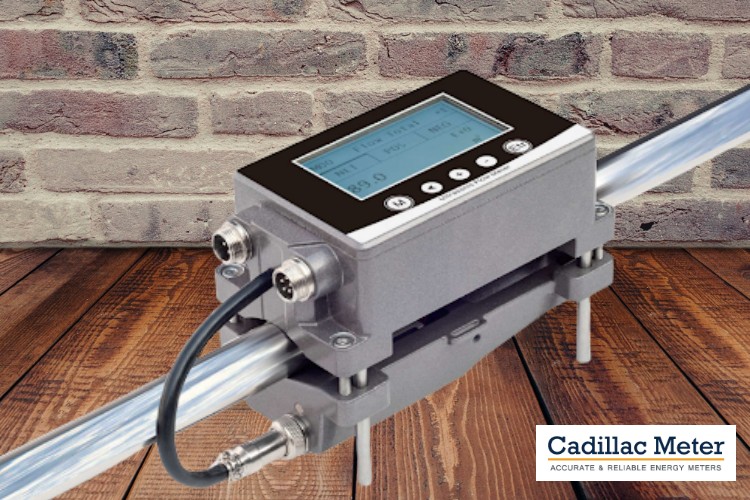

The flow meter establishes how much carrier medium moves through the energy system.
Temperature Sensing
Precision-matched temperature assemblies measure the supply and return conditions.
Energy Computation

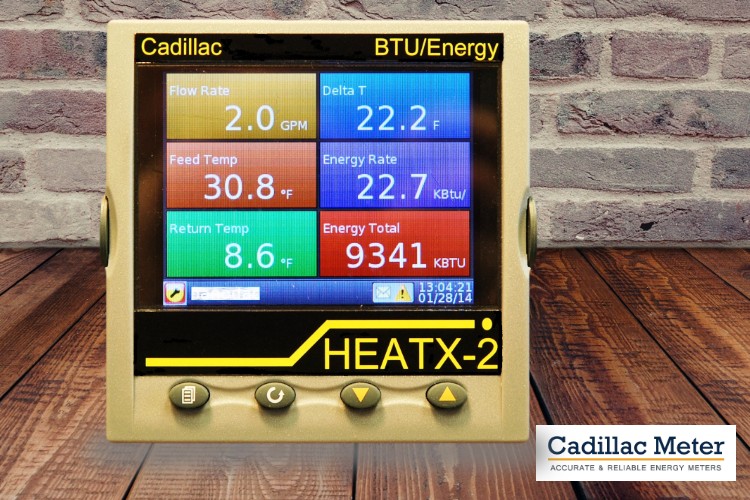

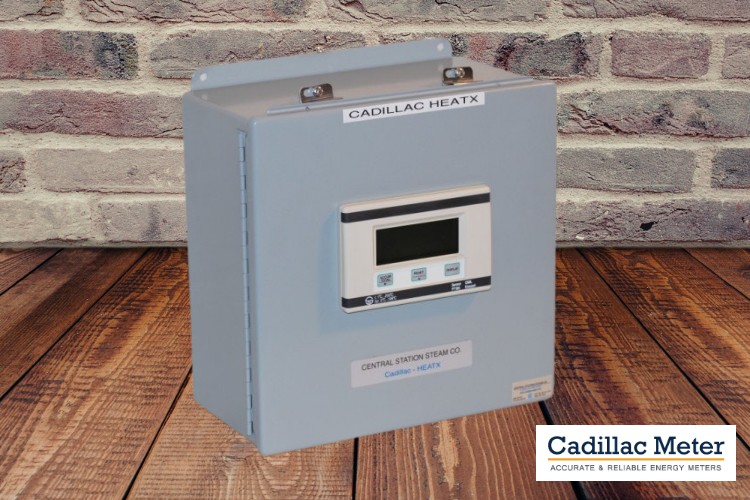

The energy computer converts the measured inputs into totalized energy information.
System Integration
Correct sizing, sensor placement and installation allow the components to operate as one system.
Reliable energy data for performance verification, usage allocation, billing and conservation planning.
Energy Measurement by Carrier Medium
The appropriate BTU or energy measurement system depends first on the medium carrying the energy. Cadillac Meter provides dedicated approaches for liquid-based heating and cooling systems, saturated steam, superheated steam and natural gas.
Selection note: These system families are not interchangeable. Carrier medium, expected flow, temperature, pressure and the required energy calculation must be confirmed before selecting a product.
Information Needed to Select a BTU System
Selecting an energy measurement system requires more than matching a meter to the existing pipe diameter. The complete operating range and the intended use of the data must be considered together.
Supplying accurate application information allows the flow meter, sensing components and energy computer to be configured as a coordinated measurement system.
Identify hot water, chilled water, saturated steam, superheated steam, natural gas or another medium.
Define whether the data will support billing, allocation, performance verification or system monitoring.
Provide minimum, normal and maximum flow rather than relying only on nominal pipe size.
State normal and maximum operating temperature and pressure conditions.
Confirm pipe size, material, available straight run, sensor locations and installation space.
Identify display, totalization, archiving, output and building-control integration requirements.
Cadillac Meter can review these conditions and help determine which energy-system family and measurement technology suit the application.
Send Application DetailsBTU and Energy Measurement Systems

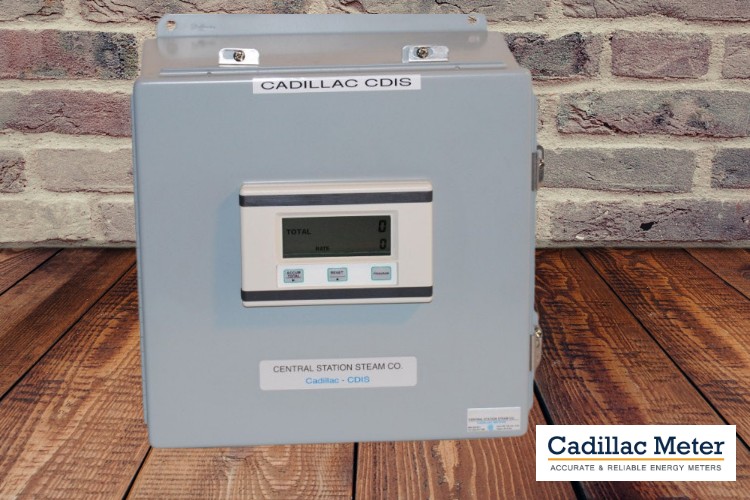

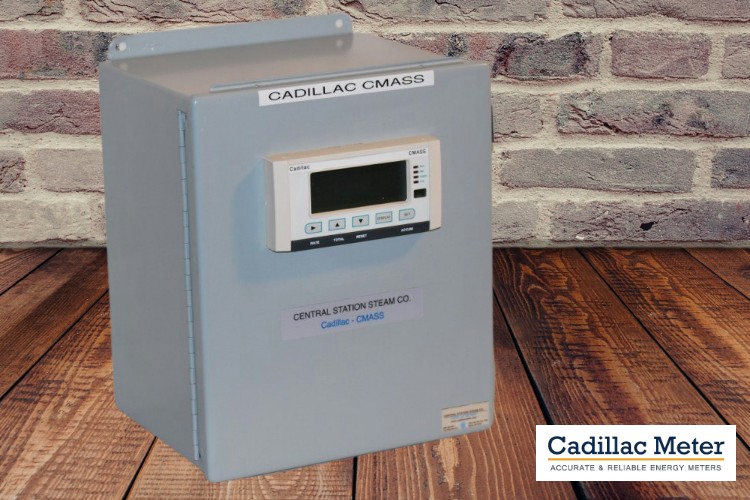

Explore Cadillac Meter systems for hot and chilled water, saturated steam, superheated steam and natural-gas energy measurement. Open any product to review its operating principle, specifications, installation requirements and technical resources.
