Condensate Measurement & Energy Monitoring
A Clearer View of Steam Energy Use with HEATX2
When steam releases heat, it condenses into water—but that condensate still carries thermal energy. Understanding both the energy delivered and the energy returned helps facilities assess heating performance more accurately.
A condensate BTU metering system combines flow measurement, temperature inputs and energy calculations. Cadillac Meter’s HEATX2 platform supports condensate-based energy measurement, helping facility teams account for heat transferred and heat remaining in the condensate. The accuracy of the complete system depends on appropriate equipment selection, installation and configuration.
What this guide covers: How condensate BTU measurement works, where HEATX2 fits into the system, and the practical factors that affect measurement accuracy and useful energy data.
01 — Understanding the Measurement

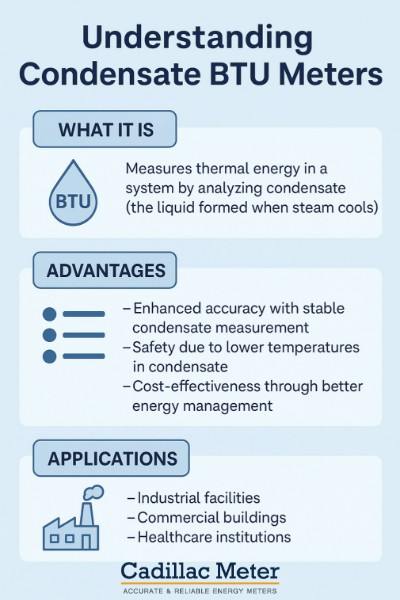

What Is a Condensate BTU Meter?

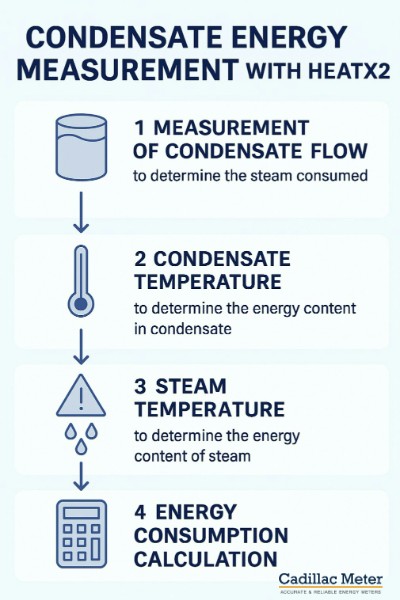

A condensate BTU metering system uses measurements from the liquid side of a steam system to calculate thermal energy. It combines a condensate flow meter, temperature sensors and an energy computer configured for the application.
The distinction matters: a flow meter measures how much condensate passes through the line. Calculating energy also requires information about its thermal condition and the steam supply. HEATX2 processes the required inputs to calculate energy values for the configured system.
Steam Delivers Heat
Steam transfers energy to a heating process or heat exchanger. As it releases its latent heat, it changes from vapour into liquid condensate.
Condensate Retains Heat
The resulting hot water still contains sensible heat. When condensate returns to the boiler plant, it carries some of the supplied energy back with it.
The System Accounts for Energy
Flow and temperature inputs allow the energy computer to account for the heat supplied and the heat remaining in the condensate, within the defined measurement boundary.
Why this matters: Energy supplied in steam and energy consumed at the point of use are different quantities. Accounting for returned condensate helps distinguish between them.
02 — The Condensate Approach

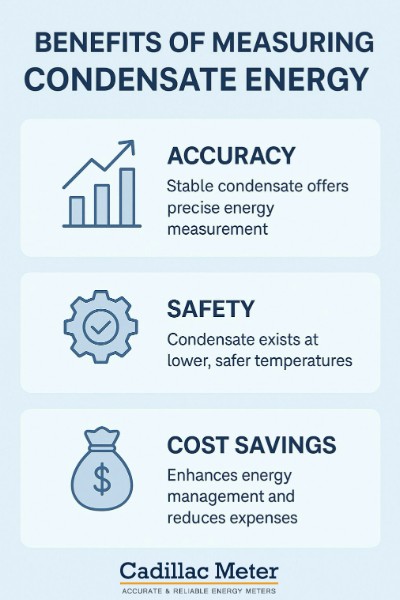

Why Measure Energy on the Condensate Side?
Measuring steam directly is an established approach, but meter selection and operating conditions can make it challenging. Condensate measurement offers another route for suitable systems, using liquid flow data as part of the energy calculation.
Working with Liquid Flow
Steam is compressible, and its density varies with operating conditions. Measuring condensate moves the flow measurement to the liquid side. This can simplify some aspects of measurement, although condensate temperature, flow conditions and meter installation still require careful attention.
Accounting for Returned Energy
Condensate returned to the boiler plant retains usable heat. Accounting for that energy helps facilities distinguish the energy supplied in steam from the energy transferred within the measured application.
Addressing Low-Flow Performance
Some steam meters have a minimum operating flow below which measurement becomes unreliable or stops. A suitably selected condensate meter can offer an alternative where changing loads make steam-side low-flow performance a concern.
Supporting Energy Management
Consistent energy records help teams compare demand, investigate changes and assess heating performance. Savings depend on how those findings are used to improve operation; installing a meter alone does not reduce consumption.
Application suitability comes first. Condensate measurement is not automatically more accurate than every steam-metering arrangement. The result depends on the measurement boundary, condensate recovery, sensor selection and installation conditions.
03 — The HEATX2 Platform
How HEATX2 Supports Condensate BTU Measurement
HEATX2 is the energy calculation and data platform within the metering system. It works with external flow and temperature sensors to turn measured inputs into useful energy information. Cadillac Meter describes a condensate-based Total Heat configuration using one condensate meter and two temperature sensors.
Energy Accounting
In the appropriate configuration, HEATX2 calculates energy supplied to a heat exchanger, energy delivered to the heating hot-water loop and energy remaining in the condensate. This helps distinguish useful heat transfer from energy returned or otherwise unaccounted for within the measurement boundary.
Dual-Channel Measurement
The platform supports two energy measurement channels. Cadillac Meter identifies configurations for two heating loops, two cooling loops, or one of each, as well as Total Heat measurement alongside a chilled-water cooling loop.
Building System Communications
HEATX2 supports BACnet/IP and Modbus TCP/IP communications, allowing compatible building management and control systems to access energy data. Confirm the required interfaces and configuration when specifying the system.
Onboard Data Archiving
Onboard archiving stores measured and calculated values for later review. The available recording period depends on the number of points being logged and their sampling intervals, with older records replaced as storage fills.
Specify the complete system: HEATX2 does not measure condensate flow by itself. The flow meter, temperature sensors, calculation setup and installation must work together to suit the application.
04 — Getting Accuracy Right
What Affects Condensate BTU Measurement Accuracy?
A capable energy computer is only one part of an accurate installation. The quality of the result also depends on what the sensors measure, where they are installed and whether the calculation represents the actual system.
Define the Measurement Boundary
Establish which building, heat exchanger or process the system will monitor. Identify where steam enters, where condensate leaves and whether any branches, drains or other connections cross that boundary.
Account for Condensate Recovery
A condensate meter measures the liquid passing through its location. Condensate discharged elsewhere, leakage or steam escaping without condensing can affect how well that reading represents steam use. Review these paths before relying on a condensate-based calculation.
Match the Flow Meter to Operating Conditions
Check the expected minimum and maximum flow, operating temperature and pressure, and whether condensate returns by gravity or pumping. Follow the selected meter’s requirements for pipe filling, orientation and installation.
Measure Temperature at the Correct Locations
Temperature inputs must represent the conditions required by the selected energy calculation. Sensor placement, installation and wiring should follow the approved system design and manufacturer’s instructions.
Verify Configuration During Commissioning
Confirm input scaling, engineering units, sensor assignments and calculation settings. Check the displayed flow, temperatures and energy values against expected operating conditions before using the data for reporting or billing.
Accuracy belongs to the whole installation. Assess the combined performance of the flow meter, temperature sensors and energy calculation. A component’s accuracy specification alone does not establish the accuracy of the complete system.
05 — Practical Applications
Where Condensate BTU Metering Can Add Value
Condensate-based energy measurement can support facilities that use steam for heating or process duties and have a suitable condensate collection arrangement. Its value comes from connecting energy data to a clearly defined building, system or process.
University & Institutional Campuses
Building-level measurement can help teams understand how heating demand varies across a campus. Records can support consumption comparisons, investigation of unusual demand and internal energy allocation.
Commercial Building Heating
In buildings supplied with steam, suitable heat-exchanger installations can be assessed using condensate-based energy calculations. The resulting data can help facilities teams review heating schedules and changes in demand.
Industrial Heating Processes
Where a process has an identifiable condensate return, energy measurement can help operators track demand over time. Interpretation should account for production levels, operating hours and changes in process conditions.
Healthcare Facilities
Hospitals and healthcare campuses can use energy records to better understand suitable steam heating applications. Each circuit needs assessment, particularly where steam is consumed directly or condensate is not fully recovered.
Using the data effectively: Energy readings help identify where further investigation is worthwhile. Meaningful comparisons should account for weather, occupancy, production and operating hours. Any billing application should also be checked against the applicable metering requirements.
06 — Common Questions
Condensate BTU Meter FAQs
Is HEATX2 a condensate flow meter?
HEATX2 is an energy measurement platform that processes inputs from external sensors. In a condensate application, it works with a suitable condensate flow meter and temperature sensors to calculate energy.
Why account for heat remaining in condensate?
Hot condensate still contains thermal energy. If it returns to the boiler plant, some of the supplied energy returns with it. Accounting for this helps distinguish energy supplied in steam from energy consumed within the measured application.
Is condensate measurement always more accurate than steam measurement?
No. It can offer advantages in suitable applications, including an alternative to steam meters with limited low-flow performance. Overall accuracy depends on equipment selection, condensate recovery, installation and the energy calculation used.
Can the system work with gravity or pumped condensate returns?
Cadillac Meter describes CMAG condensate measurement applications for both gravity and pumped returns. The selected meter and installation arrangement must suit the actual flow conditions and meet the manufacturer’s installation requirements.
Can HEATX2 communicate with a building management system?
HEATX2 supports BACnet/IP and Modbus TCP/IP communications. Confirm the required configuration, available data points and compatibility with the receiving system when planning integration.
Does installing a condensate BTU meter automatically save energy?
The meter provides information. Savings come from using that information to investigate demand, correct operating problems and assess improvements. Results depend on the facility and the actions taken.
